Ersetzen des LCD-Displays beim iPhone 11

Before starting, it is necessary to discharge the iPhone below 25% because a charged Li-ion battery can ignite or explode if accidentally cut.

• Turn off iPhone

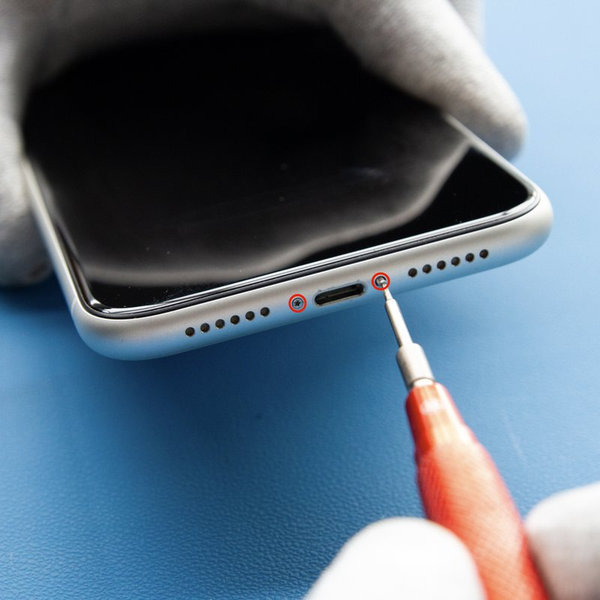

• Unscrew the two 6.7mm long pentalob screws on the bottom edge of the iPhone using a Pentalobe screwdriver (Ph0001.2).

Opening iPhone will break its waterproof seal, so have a replacement seal ready before beginning this step.  Without a new seal, your iPhone will not be waterproof.

Warming the bottom edge of iPhone helps soften the screen protector and make it easier to open.

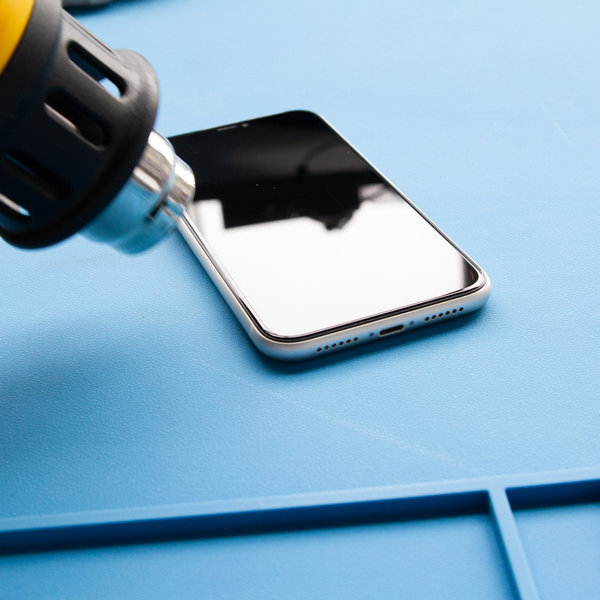

• Using a hair dryer or heat gun, heat the bottom edge of iPhone for about 3 minutes to reach about 80 ° C.
• Don’t put iPhone in the microwave !!!

• Place the suction cups near the bottom edge of iPhone, one at the front and the other at the back, and gently push it into place.
• Hold your iPhone securely and use gentle suction cups to separate the screen from the back of the phone.

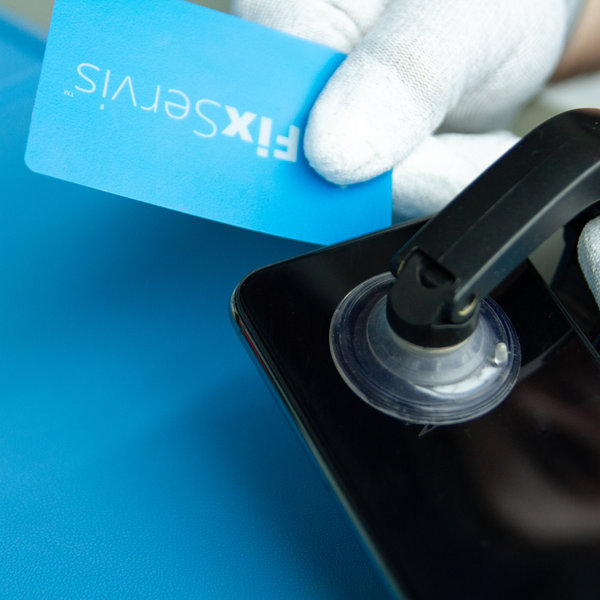

• After separating the display approx. 3 mm from the back, insert the Fixservis card into the gap.

The glue that holds the display in place is very strong, so creating this initial gap requires considerable force.  If you have difficulty, reheat the bottom edge and gently slide the screen up and down repeatedly to weaken the glue until you create a gap to insert the Fixservis card.

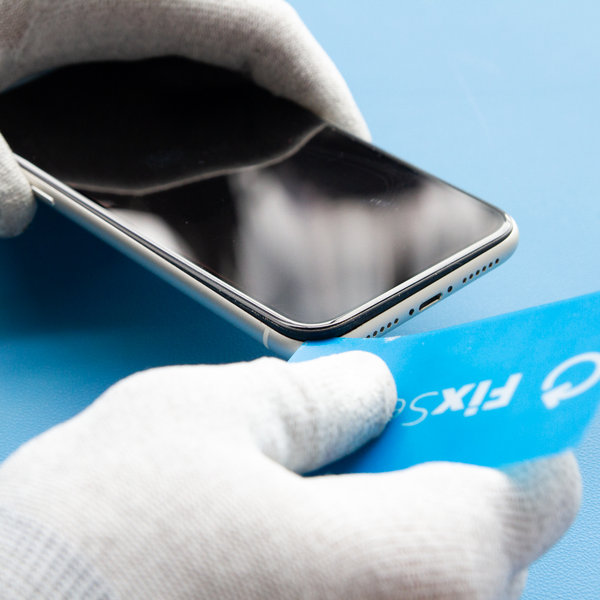

• Slide the Fixservis card around the lower left corner and up the left edge to release the adhesive that holds the display.
• Repeat the same around the lower right corner and up the right edge.

Do not insert the card too deeply to avoid damaging the internal components of iPhone.

• After successfully releasing the adhesive from the edges, remove the suction cups.

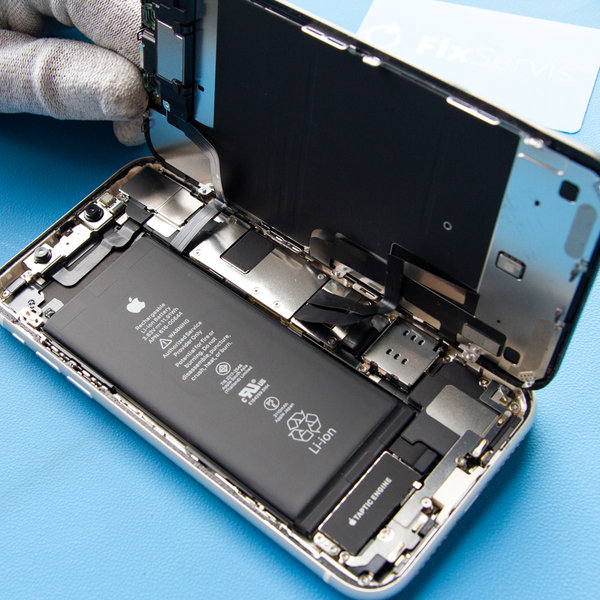

• Open iPhone by turning the display to the left like a book.
• We recommend that you support the display so that you do not tear off the flat cable that holds the display from the system board.

For now, don't try to completely detach the display, as a few fragile flat cables still connect it to the iPhone's motherboard.

• Remove the five 1.3 mm long screws using the Pentalobe screwdriver (Y) securing the logic board cover and remove at the same time.

Throughout the repair, follow each screw to make sure it returns exactly where it came from to avoid damaging your iPhone.

• Remove the three 1.1 mm long screws using a Pentalobe screwdriver (Y) securing the battery connector cover and remove at the same time.

Throughout the repair, follow each screw to make sure it returns exactly where it came from to avoid damaging your iPhone.

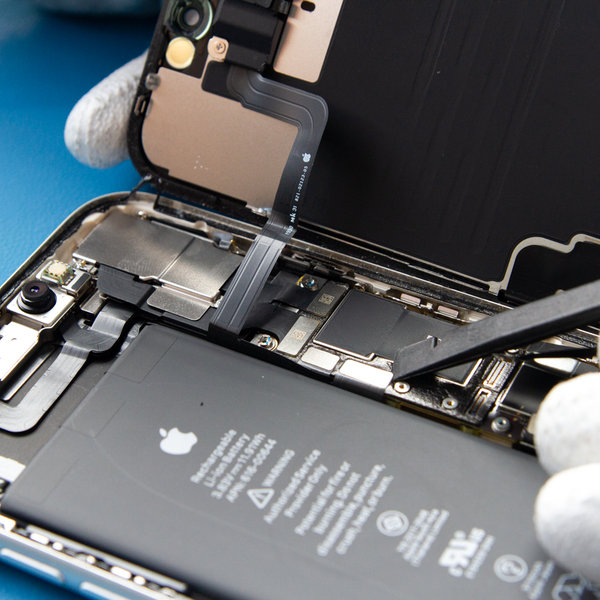

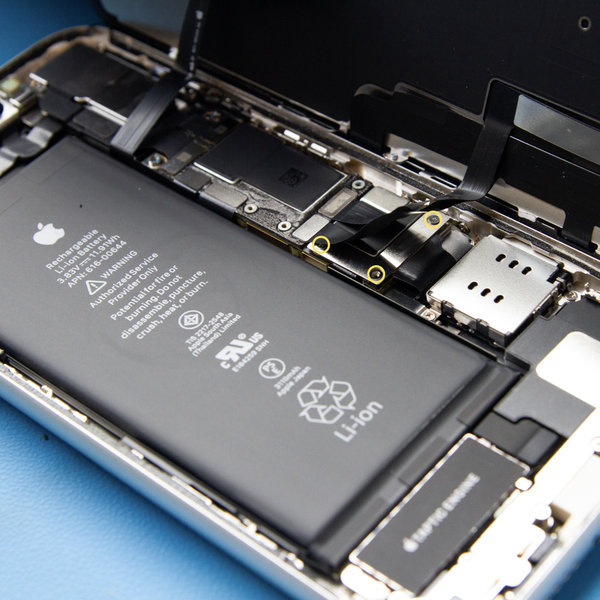

• Use the tip of the Spudger to disconnect the battery connector on the system board from the system board.
• Bend the connector slightly away from the system board to prevent accidental contact with the outlet and power to the phone during repair.

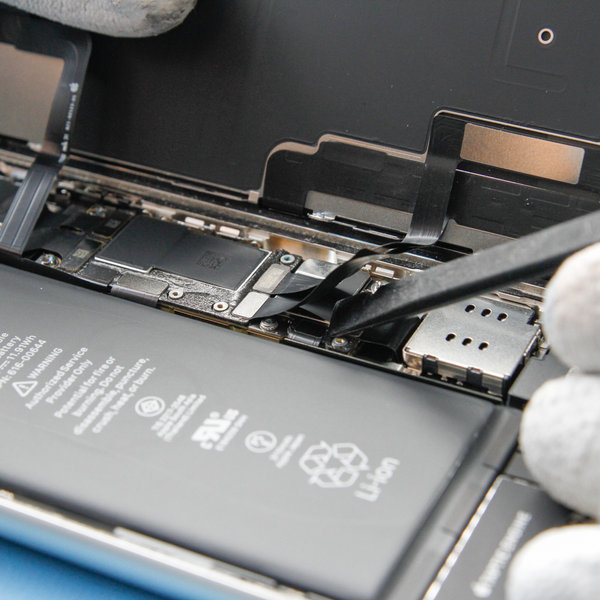

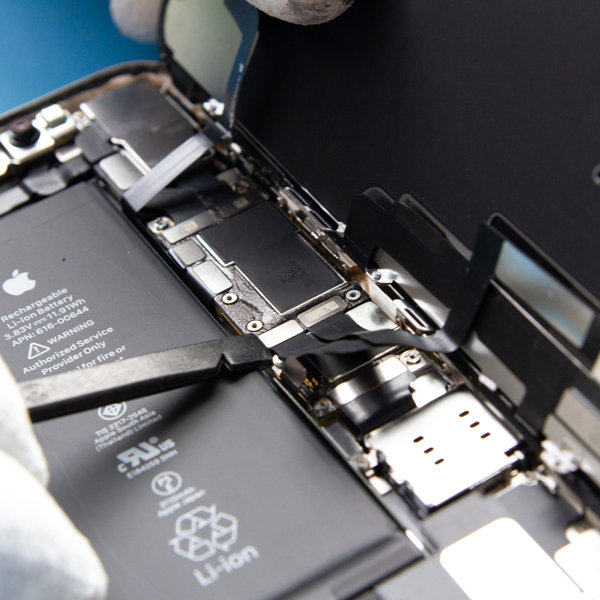

• Disconnect the OLED panel and digitizer cable connector using the Spudger.

• Disconnect the front sensor flex cable connector using the Spudger.
• Then remove the display

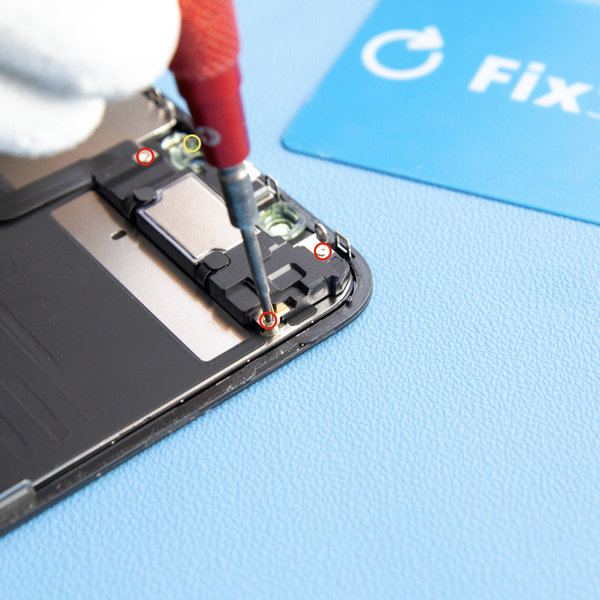

• Remove the four screws that secure the speaker and sensor assembly:

- Three 1.6 mm screws

- One screw Y000 1.3 mm

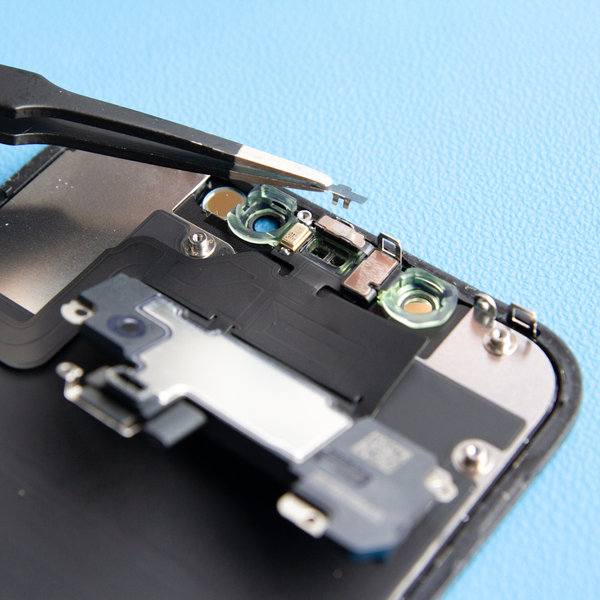

• Use tweezers to remove the small holder directly up from the sensor.
• Then disconnect the sensor connector.

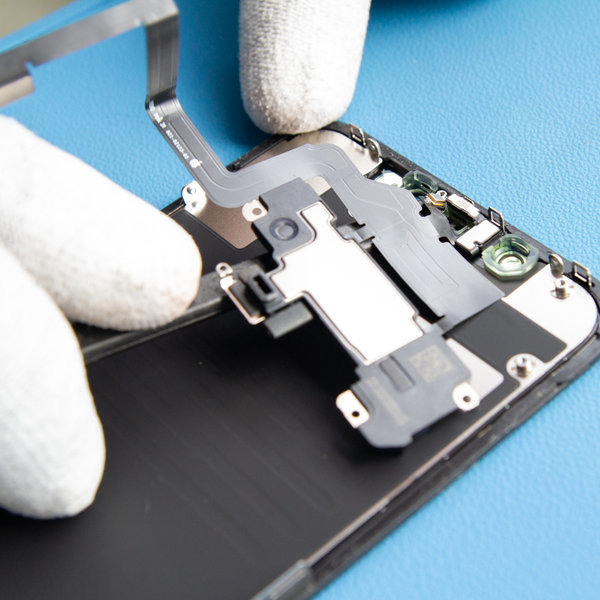

• Use the Spudger to gently peel off the speaker assembly.

The speaker assembly is attached using very thin flex cables.  Be careful not to strain or damage the cables.

• Install the speaker + front sensor assembly on the new LCD display.

To reinstall, follow these instructions in reverse order.
